Breathable 3D Spacer Mesh Fabric for Automotive Seat Ventilation
Due to possible delays in email responses, please feel free to contact me on WhatsApp for faster communication: +86 15162563679.
Product information
| Applications | |
|---|---|
| Certification | |
| Fabric Features |
- Weight160cm
- Width400gsm
| Applications | |
|---|---|
| Certification | |
| Fabric Features |

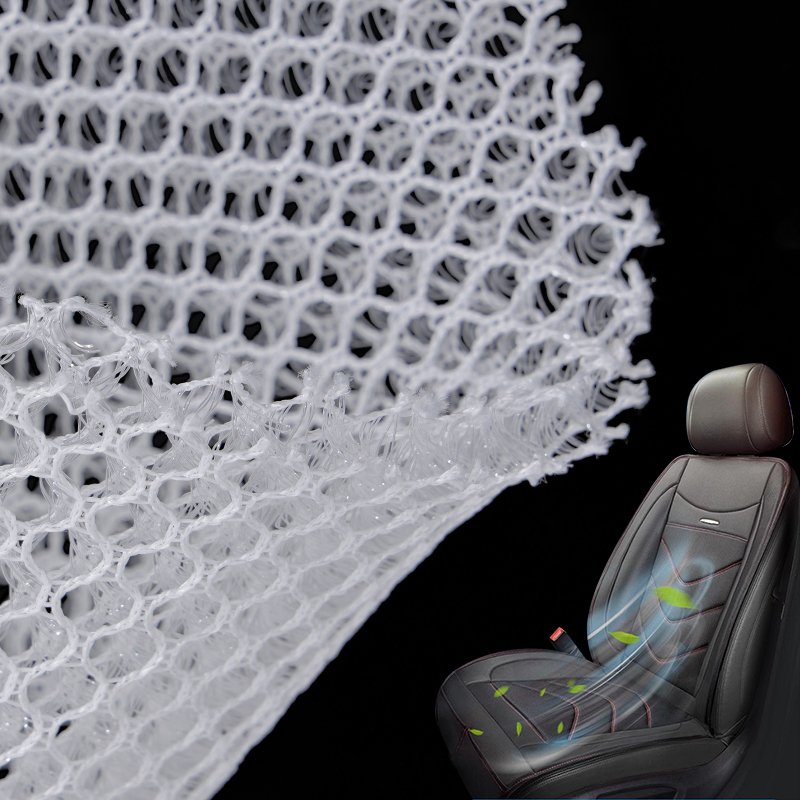

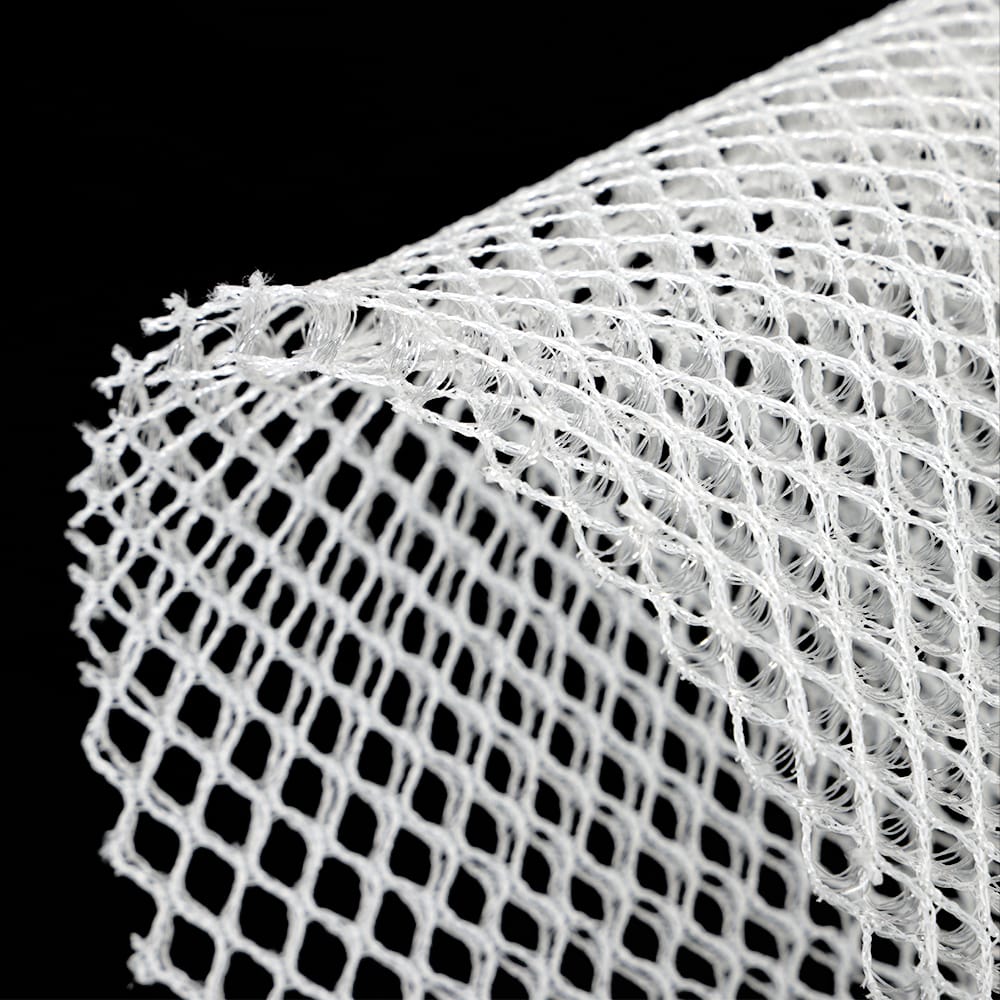

Automotive seat ventilation mesh overview
Automotive seat ventilation mesh is a 3D spacer knit designed to create stable air channels inside the seat cushion and backrest. The sandwich structure provides breathable cushioning and rapid heat/moisture dissipation under leather, PVC or fabric skins. Compared with foam-only stacks, it keeps airflow more consistent while maintaining comfort, rebound and dimensional stability over long-term use.
Key features
- High airflow 3D channels — open cells enable seat ventilation and faster heat release.
- Pressure distribution — spacer loft cushions bony areas and reduces hot spots.
- Resilient & low compression set — retains thickness after repeated loading.
- Lamination-ready — compatible with flame lamination and hot-melt webs/films; easy to die-cut.
- Durable — abrasion- and tear-resistant spacer knit for high-touch interiors.
- Sustainability options — single-polymer builds and recyclable polyester available.
Applications
- Seat cushions and backrests with active or passive ventilation
- Localized airflow layers beneath decorative skins
- Comfort pads for armrests, headrests and center consoles
Specifications & customization
- Composition: 100% polyester spacer knit
- Thickness (loft): 10–20 mm (custom lofts available)
- GSM: approx. 530 gsm (target ranges on request)
- Usable width: 1.65 m (other widths on request)
- Supply forms: roll goods or die-cut parts
- Finishing: heat-setting, edge sealing, labeling and packaging
Processing notes & references
- Verify temperature windows for flame/hot-melt lamination in your process.
- Use sharp tooling for clean die-cuts; light edge sealing helps control fuzz.
- External reference: FMVSS 302 flammability (final compliance to be validated in your assembly).
- Internal link: other car interior fabrics
For ZH10-H OEM supply of rolls or die-cut parts, contact us about automotive seat ventilation mesh for your next seat program.
1. Do you offer OEM or ODM customization services?
Yes. As a Direct Manufacturer, we provide comprehensive OEM and ODM services.
We can precisely customize fabric weight, thickness, density, hand feel, and special functional properties (such as fire retardancy, waterproofing, anti-bacterial, etc.) to fully support your specific product development needs
2. What certifications do your fabrics hold?
We are committed to meeting international environmental and safety standards. Our fabrics can provide certifications such as OEKO-TEX Standard 100, SGS, GRS (Global Recycled Standard), and NFPA 701 fire retardancy standards.
If your specific market requires specific test reports (such as fire safety or chemical compliance), we fully cooperate and assist in arranging third-party testing.
3. Can you provide samples before placing an order?
Absolutely. We strongly recommend inspecting the quality first.
In-stock items: We offer free sample swatches or hangers (shipping costs to be covered by the client).
Custom-developed samples: We can also provide sampling services specific to your requirements upon request.
4. What is your Minimum Order Quantity (MOQ)?
Our MOQ policy is very flexible to support businesses of all sizes:
In-stock items: MOQ is as low as 1 roll.
Custom orders: MOQ depends on the yarn material and production process, typically starting from 100 kg.
(Please contact us for a specific assessment based on your needs.)
5. What is your pricing structure?
We implement a volume-based “Tiered Pricing” strategy.
This means the larger the order quantity, the better the unit price. Whether for small trial orders or full container loads, we are dedicated to providing you with the most competitive factory-direct prices.
6. What is the production and delivery lead time?
Efficiency is our priority:
In-stock items: Ship within 1–3 business days.
Custom production: Typically takes 7–20 business days, depending on order quantity and production schedule.
7. Can you arrange international shipping?
Yes, we ship globally.
We compare multiple logistics partners to select the shipping method with the best cost-performance ratio for you.
Methods: Express, Air Freight, and Sea Freight (LCL/FCL).
DDP Service: For smaller orders and specific regions, we also offer DDP (Delivered Duty Paid) services to make the import process hassle-free.
8. How do you ensure quality stability for bulk orders?
Consistency is the foundation of our business. We rely on a stable raw material supply chain and standardized production processes.
Every batch of bulk production undergoes rigorous quality inspection before shipment (testing for color consistency, shrinkage, strength, etc.) to ensure the quality matches your confirmed sample perfectly.
9. Do you have the capacity for long-term stable supply?
Absolutely.
With robust supply chain management and controlled in-house production capacity, we prioritize the needs of our long-term partners even during peak seasons, guaranteeing stable supply and on-time delivery.
10. How do you handle quality issues with bulk orders?
We take quality issues extremely seriously. In the rare event of a quality discrepancy, we execute a “Customer-First” resolution policy.
We will investigate the cause immediately and provide solutions such as replenishment, re-production, or refunds to ensure your interests and production are not compromised.
