The "Drum Effect" Crisis and the Shift to Engineered Silence
Let me start with a conversation I had last month with a purchasing manager from a leading US simulator brand.
He sat in my office, looking frustrated. “We have very good launch monitors, good software,” he said. “But the projector screen became our biggest problem. Our customers keep complaining about one thing: The Noise. When a ball hits our standard screen at 160 mph, it sounds like a gunshot. It kills the luxury vibe.”
The screen is the “Elephant in the room” for the indoor golf industry. For years, the market relied on Heavy-Duty Industrial Canvas/Tarp or Porous Single-Ply Warp-Knit Mesh.
This isn’t just a textile problem; it’s an acoustic and kinetic engineering problem.
As a factory that has spent 20 years supplying functional textiles to the automotive and sports industries, we realized the solution wasn’t to “weave a thicker cloth.” The solution was to borrow technology from high-end running shoes (cushioning) and home theater acoustics (sound dampening).
Enter the K003 Series (3D Spacer Mesh). It marks the transition from the era of “hanging a sheet” to the era of “installing an energy-absorbing system.”
What Actually is "Spacer Mesh" in a Simulator Context?
If you cut open our K003-F or K003-H fabric and looked at it under a microscope, you wouldn’t see a flat piece of cloth. You would see a micro-architectural structure.
Produced on our Karl Mayer RD6 double-needle bar machines, this fabric is a “sandwich” composed of three functional zones:
Zone A (Impact Face): A tight, HD-optimized knit that mimics the smoothness of cinema screens to resolve 4K pixels.
Zone B (The Energy Sink): This is the magic. Millions of vertical monofilament yarns act as independent “micro-springs.” When a ball hits, these springs compress, absorbing the kinetic energy (Joules) and converting it into mechanical deformation and trace heat.
Zone C (Stabilizer): A heavy-duty back mesh that locks the structure, preventing the “sagging” common in cheap knits.
The result? The ball doesn’t “bounce” off a drum; it is “caught” by a cushion. This structure reduces impact noise by up to 40% compared to Heavy-Duty Industrial Canvas/Tarp or Porous Single-Ply Warp-Knit Mesh.
Technical Specs: The K003 Series Family
We don’t believe in “one size fits all.” Based on data from thousands of installs, we engineered two specific variations.
| Spec | K003-F (The Cinema White) | K003-H (The Ambient Grey) | Engineering Note |
| Screen Gain | 1.0 – 1.1 | 0.8 – 0.9 | White offers a “unity gain” surface, reflecting light in a Lambertian (even) distribution for maximum brightness. |
| Contrast Ratio | Standard | Enhanced (High) | Grey lowers the “Black Floor” of the projection, allowing the human eye to perceive deeper shadows and richer textures. |
| Ambient Light Rejection (ALR) | Minimal | Moderate to High | The grey pigment absorbs off-axis light (stray light) rather than reflecting it, preventing the image from “washing out.” |
| Structure | 3-Layer 3D Spacer | 3-Layer 3D Spacer | Both utilize the “micro-spring” core. |
| Image Brightness | Maximum Efficiency | Light Absorbing | Grey screens require roughly 20-30% more projector lumens to achieve the same perceived brightness as white. |
| Surface | Smooth Knit | Smooth Knit | Optimized for 4K Short-Throw Projectors. |
| Bounce | < 5% Rebound | < 5% Rebound | Extremely safe for close-range hitting (8-10ft). |
Cross-Industry Innovation: How Structure Dictates Performance
Why did we choose the Spacer Structure? We applied “Cross-Domain Thinking.”
From the Automotive Industry: We took the concept of “energy displacement” used in car seats. The K003’s core collapses on impact, just like a car’s crumple zone. This creates the “Dead Ball” effect—the ball drops straight down, protecting the golfer.
From the Home Theater Industry: We adopted the “Acoustic Transparency” logic. A solid screen reflects sound; a porous mesh allows air pressure to pass through. The K003 series lets the “shockwave” of the impact pass through the mesh holes, significantly reducing the “Boom” sound.
Where Should You Deploy These Materials?
As a B2B buyer, you need to match the fabric to your customer’s environment.
Scenario A: The Commercial “Golf Bar” (Use K003-F White)
The Setup: A dark, moody environment with controlled lighting. Heavy usage (1000+ shots/day).
Why K003-F: At 570gsm, it is built like a tank. The extra mass provides maximum quietness, and the white surface reflects every lumen of the projector, making the colors pop in the dark.

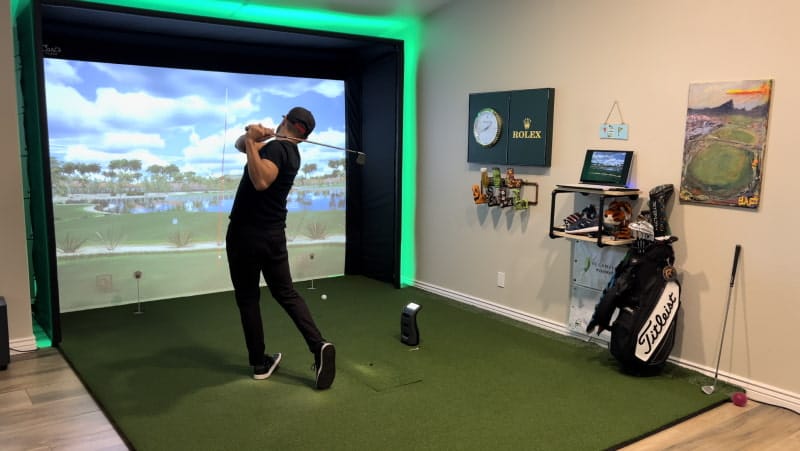

Scenario B: The “Living Room” Simulator (Use K003-H Grey)
The Setup: A client’s garage or living room with windows. They want to watch football with the lights on or hit balls during the day.
Why K003-H: This is where the Grey Screen shines. It acts like an “Ambient Light Rejecting” (ALR) surface. It absorbs the stray light from the windows, ensuring the blacks stay black, not washed-out grey. This is the trending product.
The "Brutal Truth" Comparison: K003 vs. The Market
Let’s be objective. No material is perfect, but let’s see where K003 stands.
| Feature | Canvas | Single-Layer Polyester Mesh | Our 3D Spacer Mesh K003 | Engineering Insight |
| Structure | Single-layer heavy weave with rigid industrial coating. | Single-layer open knit with visible pores. | Triple-layer composite (Face + Cushion + Backing). | 3D weaving separates the striking surface from the energy-absorption layer. |
| Visual Quality | High glare and grainy texture; distorts colors. | Poor. Significant “light bleed” and ghosting due to holes. | 4K/HD Ready. High-density surface for vibrant clarity. | Engineered micro-weave eliminates the “Screen Door Effect” (SDE). |
| Noise Control | Extreme. Loud, ear-piercing “crack” on every hit. | Moderate. Flapping sound; better than canvas but still audible. | The 3-layer structure provides excellent sound dispersion, reducing the decibel level by 40%. | The 3D core acts as a “sound trap,” dissipating high-frequency impact waves. |
| Safety | High Risk. Rigid surface causes dangerous ball bounce-back. | Safe. Flexible netting absorbs energy well. | Superior. “Dead-stop” tech; ball drops safely upon impact. | Kinetic energy is instantly dissipated through internal fiber compression. |
| Durability | High burst strength, but coating cracks and peels over time. | Prone to “bagging” or permanent stretching at impact zones. | Its lifespan is more than three times that of previous generations of fabrics. | Multi-link polyester yarns provide superior fatigue resistance vs. single layers. |
| Flatness | Heavy and stiff. Prone to stubborn wrinkles and folds. | Lightweight but sags easily; edges prone to curling. | Premium. Heavy drape with a flat, wall-like finish. | Optimal material weight ensures a smooth, professional-grade projection plane. |
| Industry Status | Basic protection; lacks performance and comfort. | A compromise between silence and image quality. | The ultimate balance of optics, acoustics, and safety. | Evolution from a simple “hitting barrier” to a “high-performance optical surface.” |
Compliance: Verified Safety
In the B2B world, a “good product” isn’t enough; it must be a “legal product.”
We don’t just say “it’s safe”; we provide the Lab Reports:
Oeko-Tex Standard 100: Certified free from harmful chemicals. Essential for home use where kids touch the screen.
EN-71 (Mechanical Safety): Verified tensile strength. It won’t rip under the stress of a 180 mph ball.

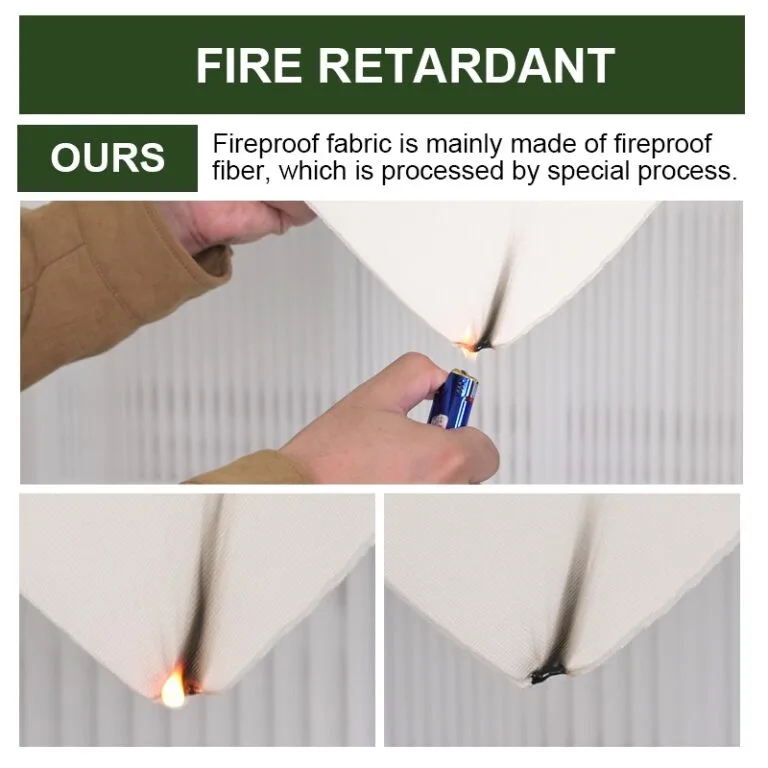

Fire Retardancy (Optional): We can customize FR treatments (NFPA 701) for commercial venue inspections. This will be an important standard for commercial use and for ensuring personal safety.
Inside the Factory: Quality Control on the Karl Mayer RD6
Consistency is the nightmare of every sourcing manager. “Why was the last batch thick, but this one is thin?”
We solved this by using German Karl Mayer RD6 machines with automated laser monitoring and our heat setting machine.
The “Batch Consistency” Promise: We control the yarn tension digitally. The fabric you buy in January is the same specification you buy in December.
Defect Scanning: If a defect is found, the roll is flagged and cut. We do not ship B-grade fabric to export clients.
OEM & Customization: Your Brand, Your Spec
We are not just selling rolls; we are your R&D Partner.
For the “Carl’s Place” Competitors: If you want to create your own “Premium Grey” line, we can supply the K003-H in master rolls.
Customization: Need a specific “Stiffness” to match your enclosure framing? We can adjust the finishing process to make the fabric softer or more rigid.
Why Partner With a 20-Year Specialist?
You can buy fabric from a general trader, or you can buy from a functional textile engineer.
We speak “Simulator”: We understand terms like “Aspect Ratio,” “Bounce Back,” and “Lumen Gain.”
Global Reach: We already ship LCL/FCL to the US, UK, and Korea. We know the logistics of handling 3.2m long packages.
Long-Termism: We aren’t here for a quick sale. We are here to help you build a reputation for “The Quietest Screen in the Market.”
The Future is Quiet and High-Contrast
The days of loud, white, washed-out screens are fading. The market is moving towards Silent, High-Contrast Immersion.
Whether you choose the K003-F (White) for the dedicated theater room or the K003-H (Grey) for the modern multi-use space, you are choosing an engineered solution, not just a fabric.We also offer customization services; please feel free to tell us your requirements.
Let’s stop selling “cloth” and start selling “the perfect impact experience.”
Have a technical question? Ask our engineers about “Bounce-back coefficients.”
Need a Sample Kit? We offer a box with both K003-F and K003-H swatches.
